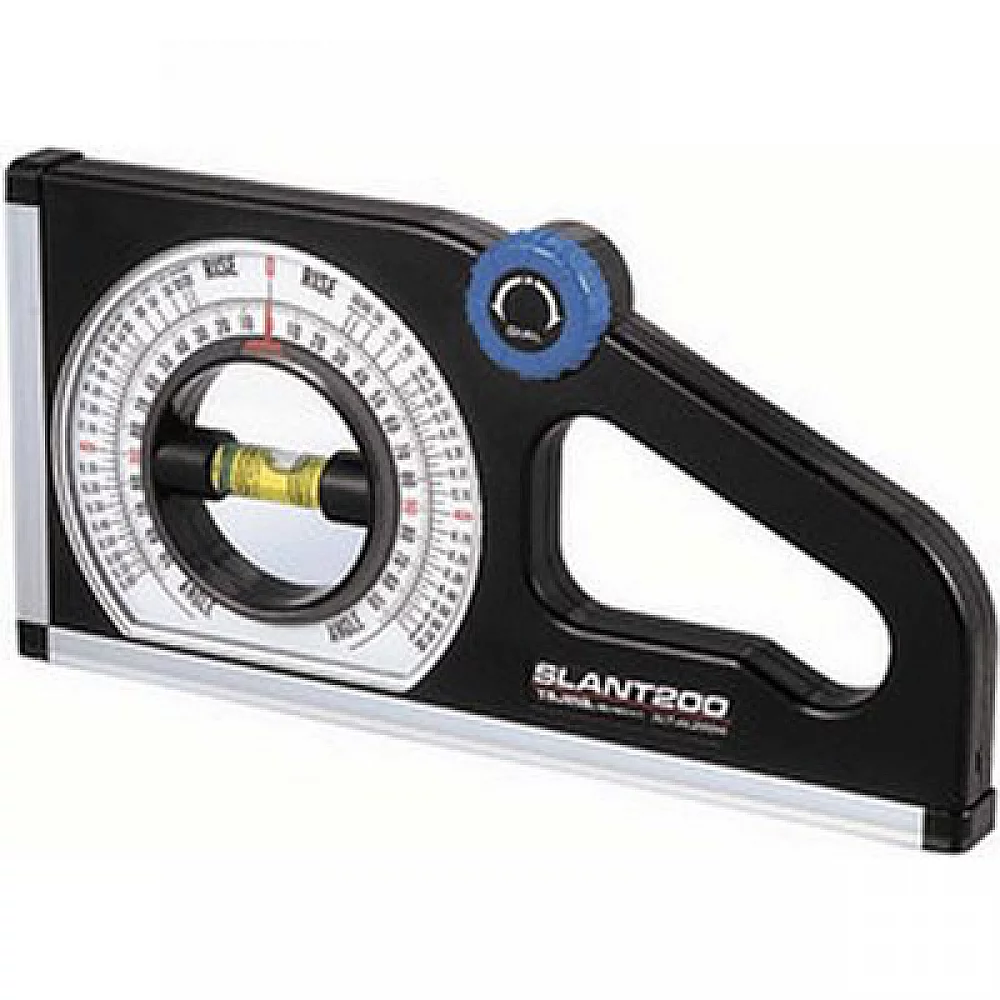

Tajima Slant AL200 Rotating Dual Scale Angle Meter

The Tajima Slant AL200 is a rotary angle meter which is designed to provide an easy way to measure the angles of slopes and inclines with one hand. It is equipped with a durable, lightweight aluminium frame and a magnet for affixing to metallic surfaces. To Measure an Angle or Pitch 1. Place the bottom of the pitch angle meter flush with the surface to be measured. 2. Rotate the thumb screw knob until the bubble in the vial is centered between the alignment lines then read the angle or pitch calibration mark at the index pointer. 3. Invert the pitch angle meter to measure a downward slope. To Set an Angle or Pitch 1. Rotate the thumb screw knob until the index pointer is positioned at the desired angle or pitch calibration mark. 2. Place the bottom of the pitch angle meter flush with the surface to be set. 3. Rotate together until the bubble in the vial is centered between the alignment lines. Specifications • Measurement Range 0° 130° • Accuracy 1° • Dimensions 250mm x 124mm x 24mm • Weight 300g Features and Benefits • Rotating dual scale angle meter to single handedly measure, set, or replicate a pitch or angle • Durable aluminum frame • Magnet on bottom allows for hands free use with compatible surfaces...Read More...»»
