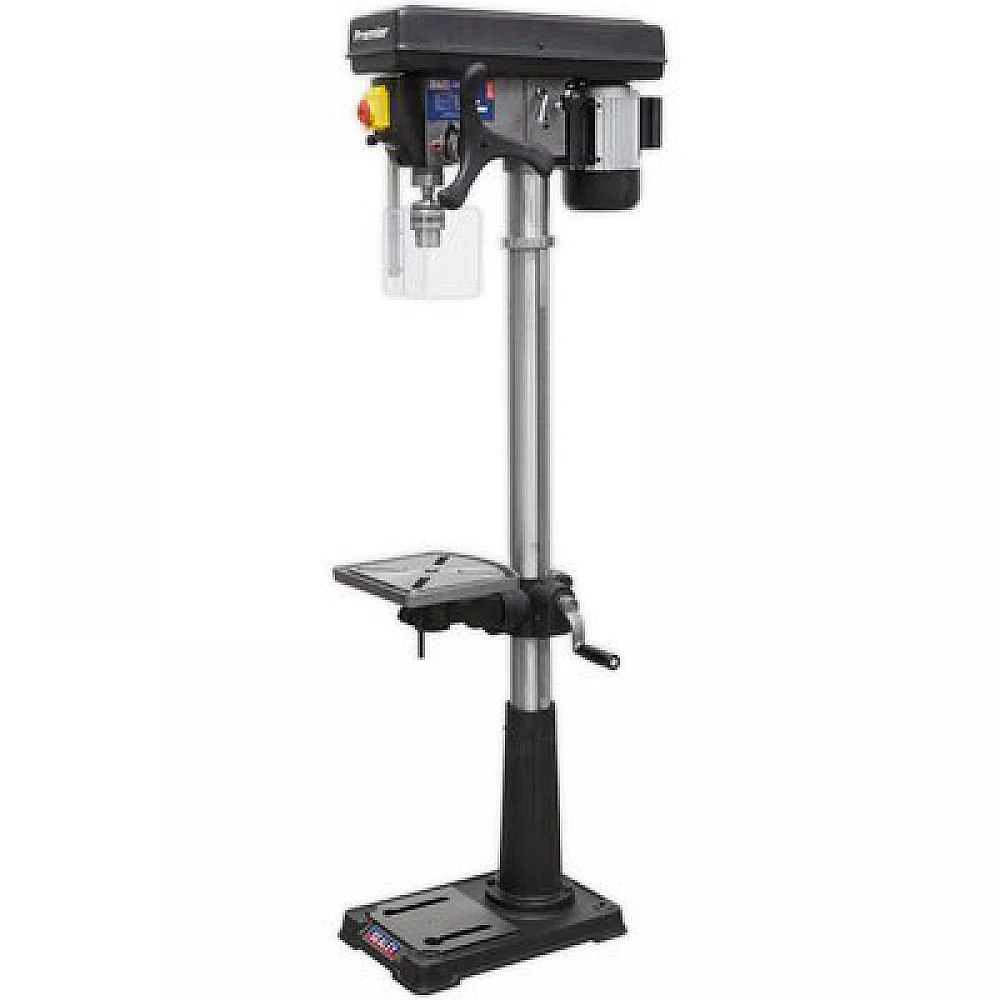

Sealey PDM170F 16 Speed Floor Pillar Drill

The Sealey PDM170F is a professional 16 speed floor standing pillar drill designed for demanding workshop applications. Part of the Premier range, this heavy duty machine features a robust aluminium bodied induction motor delivering reliable performance for precision drilling operations across metal, wood and other materials. Built with professional workshops in mind, this floor pillar drill incorporates comprehensive safety features including a no volt release switch to prevent inadvertent start up, and a microswitch protected pulley cover that prevents operation when open. The electrically interlocked chuck guard provides additional operator protection during drilling tasks. The drill is equipped with a 16mm 58 capacity chuck with MT2 taper, offering versatility across a wide range of drilling applications. With 16 speed settings spanning 190 3000rpm, operators can select the optimal speed for different materials and drill bit sizes. The large 254 x 254mm square working table features precision rack and pinion height adjustment, providing stable support and accurate positioning for workpieces. The substantial 170mm spindle centre to column distance and 80mm spindle travel make this pillar drill suitable for larger fabrication work, engineering tasks and general workshop drilling operations. The 340mm swing capacity accommodates sizeable workpieces, whilst the sturdy 73mm diameter column ensures rigidity during operation. Features and Benefits • 16 variable speeds 190 3000rpm for drilling different materials and bit sizes • Heavy duty aluminium bodied induction motor for long term reliability • No volt release switch prevents accidental start up after power interruption • Electrically interlocked chuck guard enhances operator safety • Precision rack and pinion table adjustment for accurate workpiece positioning • 170mm spindle to column distance accommodates larger drilling tasks • Microswitch protected pulley cover adds operational safety • 3 year manufacturers guarantee for peace of mind Specifications • Base Size 450 x 270mm • Brand Premier • Collar Diameter Ø55mm • Column Diameter Ø73mm • Drilling Capacity Chuck Size 16mm • Integral Work Light No • Maximum Distance Spindle to Base 1255mm • Maximum Distance Spindle to Table 770mm • Motor Power Start 370W600W • Nett Weight 47kg • Number of Speeds 16 • Optional Accessories PDMKC Keyless Pillar Drill Chuck 16mm • Overall Height 1610mm • Speed Range 190 3000rpm • Spindle Centre to Column 170mm • Spindle Nose Taper MT2 • Spindle Travel 80mm • Supply 230V • Swing 340mm • Working Base Surface Size 205 x 200mm • Working Table Surface Size 254 x 254mm...Read More...»»
