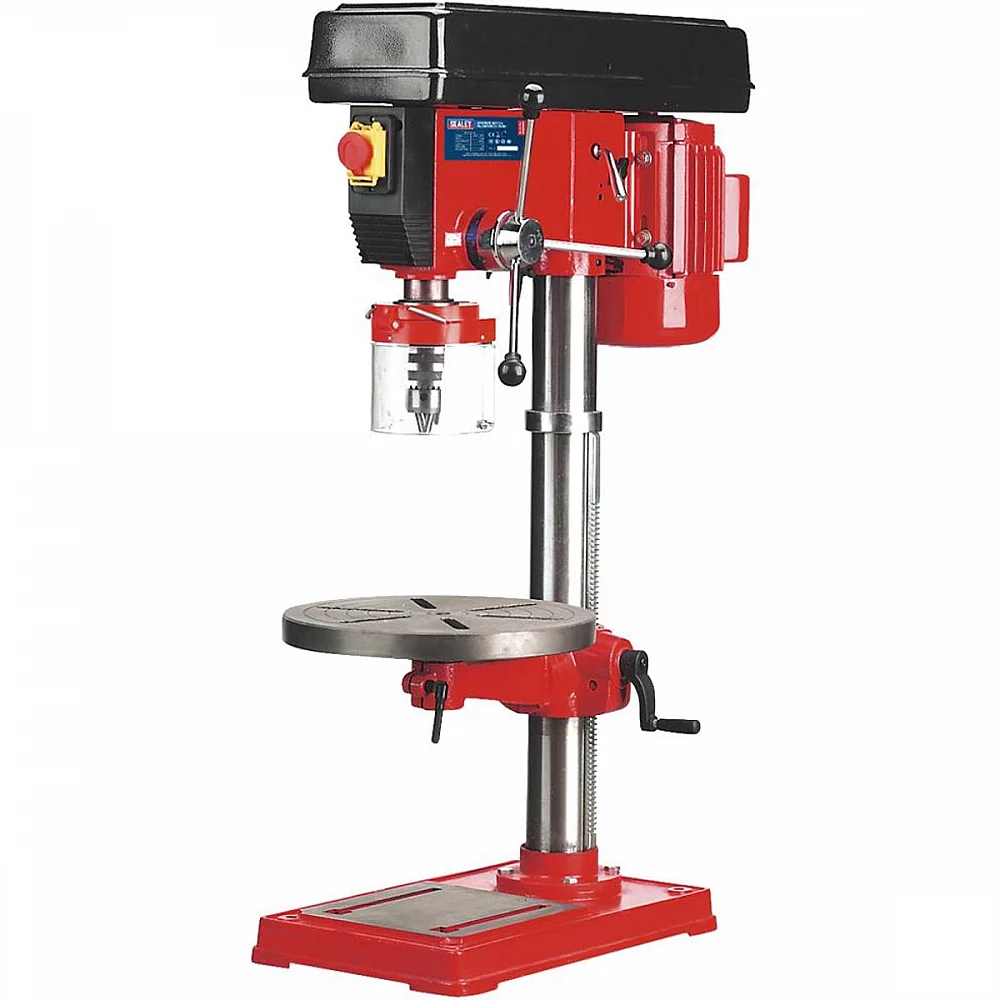

Sealey GDM180B 16 Speed Bench Pillar Drill

The Sealey GDM180B is a 16 speed bench pillar drill designed for light industrial, agricultural and woodworking applications. This versatile drill press combines precision engineering with comprehensive safety features, making it suitable for professional workshops and educational environments. Built to meet Safety of Machinery Safety Directives 1992 and subsequent amendments, this bench drill features rack and pinion feed shafts with adjustable preset depth control for accurate repetitive drilling operations. The 20mm capacity chuck with MT3 Morse taper spindle housing accepts taper shank drill bits, whilst the 16 speed drive system provides a speed range from 120 to 3000rpm, allowing you to match drilling speeds to different materials and bit sizes. The 550W motor delivers reliable performance across diverse drilling tasks. With a spindle travel of 80mm and spindle centre to column distance of 216mm, this pillar drill offers sufficient capacity for most general drilling applications. The Ø355mm working table provides a stable platform, whilst the 520 x 320mm base ensures firm mounting on your workbench. Safety is prioritised throughout the design, with full guarding making it appropriate for educational use. The no voltage switch with locking cover prevents accidental starting, whilst mechanical protection denies access to drive belts during operation. Optional mortise attachment available for enhanced functionality. Features and Benefits • 16 speed configuration 120 3000rpm for versatility across different materials • Rack and pinion feed with preset depth control for accurate repetitive work • Fully guarded design with no voltage switch meets safety directives • MT3 Morse taper spindle accepts taper shank drill bits • Suitable for industrial, agricultural, woodworking and educational settings • 80mm spindle travel and 20mm chuck capacity for general drilling tasks Specifications • Base Size 520 x 320mm • Brand Sealey • Collar Diameter 75mm • Column Diameter 80mm • Drilling Capacity Chuck Size 20mm • Maximum Distance Spindle to Base 685mm • Maximum Distance Spindle to Table 495mm • Motor Power Start 550W750W • Nett Weight 70kg • Number of Speeds 16 • Overall Height 1085mm • Speed Range 120 3000rpm • Spindle Centre to Column 216mm • Spindle Nose Taper MT3 • Spindle Travel 80mm • Supply 230V • Swing 432mm • Working Base Surface Size 240 x 280mm • Working Table Surface Size Ø355mm • Model No. GDM180B This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery....Read More...»»
