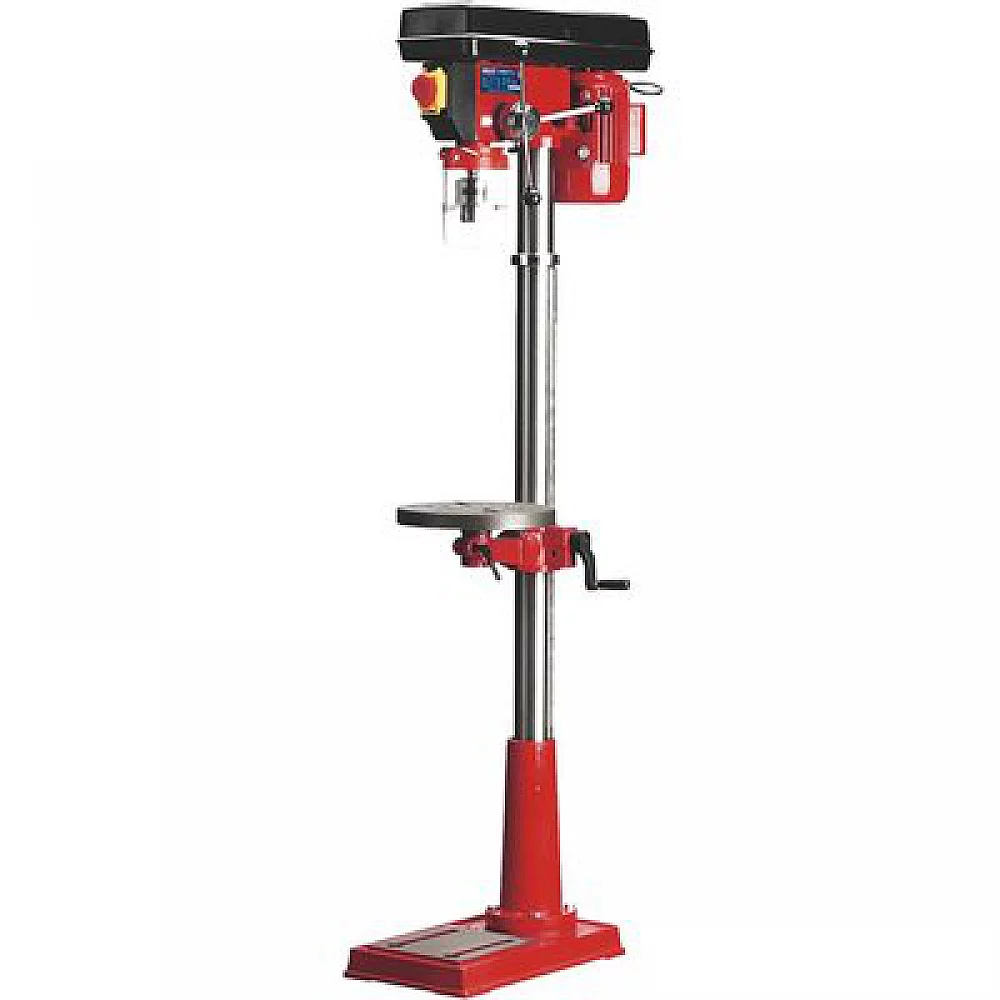

Sealey GDM140F 12 Speed Floor Pillar Drill

The Sealey GDM140F is a floor standing pillar drill designed for professional workshops, educational establishments and industrial environments. This 12 speed drill offers the drilling capacity and precision of a bench mounted model whilst preserving valuable workbench space, making it an efficient choice for busy workshops where floor space is more readily available than bench area. Featuring a 16mm capacity chuck with MT2 taper, this 370W pillar drill delivers variable speeds from 210 to 2580rpm across its 12 speed range, enabling operators to select the optimal drilling speed for different materials and bit sizes. The adjustable tilting table offers versatility for angled drilling operations, whilst rack and pinion height adjustment ensures precise positioning of workpieces. With a spindle centre to column measurement of 127mm and 60mm spindle travel, the drill provides adequate working capacity for typical metalworking and fabrication tasks. Safety features include a no load voltage switch and locking cover to prevent accidental starting, making the GDM140F compliant with workplace safety requirements. Full CE certification confirms suitability for use in educational establishments and industrial settings where safety standards are paramount. The drill accepts an optional mortise attachment Model No. MA10 to extend its functionality for woodworking applications, whilst the keyless chuck option GDMXKC provides convenient bit changes without requiring chuck keys. Features and Benefits • Floor standing design frees up valuable bench space for other tools and work • 12 speed configuration from 210 2580rpm for drilling various materials • Adjustable tilting table and rack and pinion height adjustment for precise workpiece positioning • No load voltage switch and locking cover prevent accidental starting • CE certified and approved for educational and industrial workplace use • Compatible with optional mortise attachment MA10 for extended functionality Specifications Base Size 420 x 250mm Brand Sealey Collar Diameter Ø60mm Column Diameter Ø60mm Drilling Capacity Chuck Size Ø16mm Maximum Distance Spindle to Base 1200mm Maximum Distance Spindle to Table 810mm Motor Power 370W Nett Weight 41.0kg Number of Speeds 12 Optional Accessories GDMXKC Keyless Pillar Drill Chuck 16mm Overall Height 1500mm Speed Range 210 2580rpm Spindle Centre to Column 127mm Spindle Nose Taper MT2 Spindle Travel 60mm Supply 230V Swing 254mm Working Base Surface Size 190 x 215mm Working Table Surface Size Ø248mm...Read More...»»
