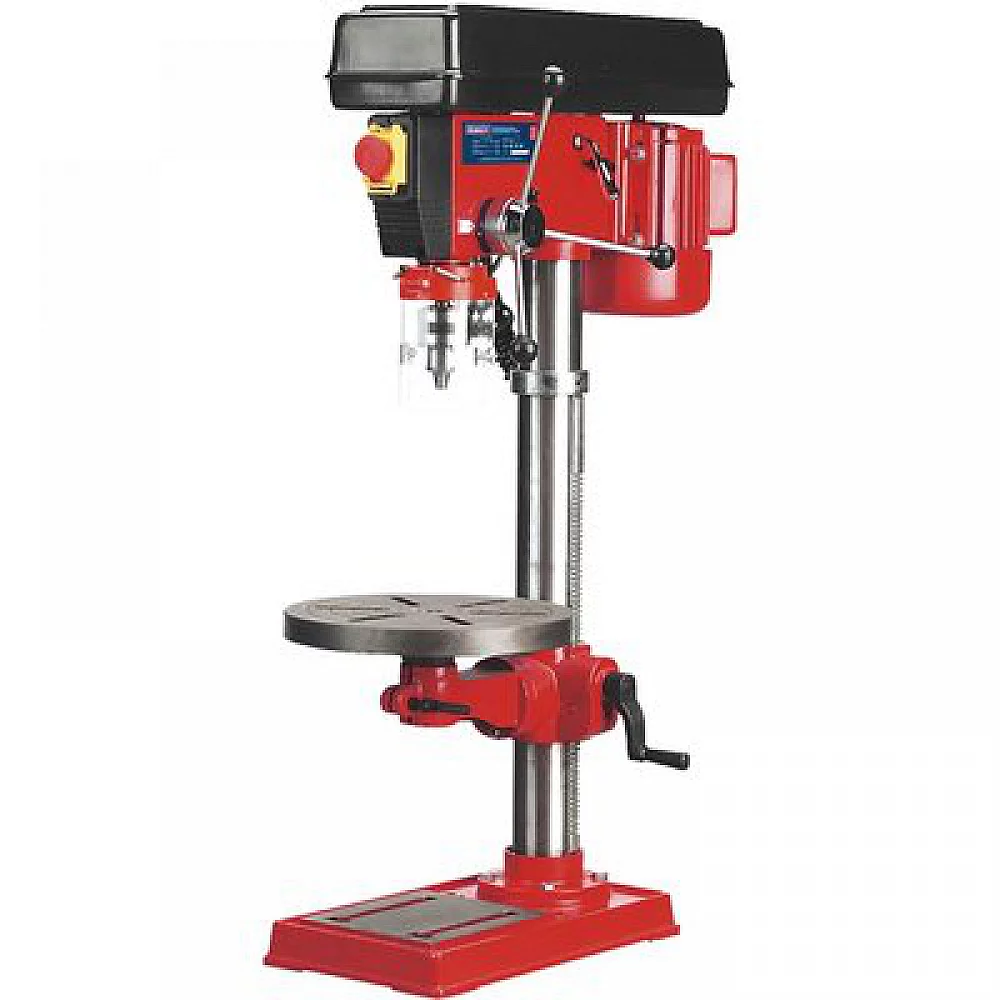

Sealey GDM120B 16 Speed Bench Pillar Drill

The Sealey GDM120B is a 16 speed bench pillar drill designed for light industrial, agricultural and woodworking applications. This versatile bench drill combines precision engineering with comprehensive safety features, making it suitable for professional workshops, farms and educational establishments. The drill features a rack and pinion feed shaft with adjustable preset depth control, ideal for repetitive drilling tasks where consistency is essential. The multiple speed drive system offers 16 speeds ranging from 210 to 3340rpm, providing flexibility for drilling various materials and hole sizes. The MT2 Morse taper spindle housing accepts taper shank drill bits for enhanced versatility, whilst the 16mm capacity chuck handles standard drilling operations with ease. Safety compliance is built into this bench pillar drill, meeting Safety of Machinery Safety Directives 1992 and amendments. The no voltage release switch prevents accidental starting and enables insurance company approval for use in educational settings. Mechanical protection denies access to drive belts during operation, ensuring operator safety. The spindle centre to column measures 165mm, with 80mm spindle travel for controlled drilling depth. A mortise attachment is available separately Model No. MA10 for extended functionality. Features and Benefits • 16 speed range from 210 3340rpm for versatility across materials • Adjustable preset depth control for accurate repetitive work • No voltage release switch and locking cover for enhanced safety • MT2 Morse taper spindle accepts taper shank drill bits • Meets safety directives with insurance approval for educational use • Rack and pinion feed shaft for smooth, controlled operation Specifications • Base Size 420 x 250mm • Brand Sealey • Collar Diameter 60mm • Column Diameter 70mm • Drilling Capacity Chuck Size 16mm • Maximum Distance Spindle to Base 600mm • Maximum Distance Spindle to Table 410mm • Motor Power Start 350W550W • Nett Weight 47kg • Number of Speeds 16 • Optional Accessories GDMXKC Keyless Pillar Drill Chuck 16mm • Overall Height 960mm • Speed Range 210 3340rpm • Spindle Centre to Column 165mm • Spindle Nose Taper MT2 • Spindle Travel 80mm • Supply 230V • Swing 330mm • Working Base Surface Size 210 x 190mm • Working Table Surface Size Ø310mm • Model No. GDM120B...Read More...»»
