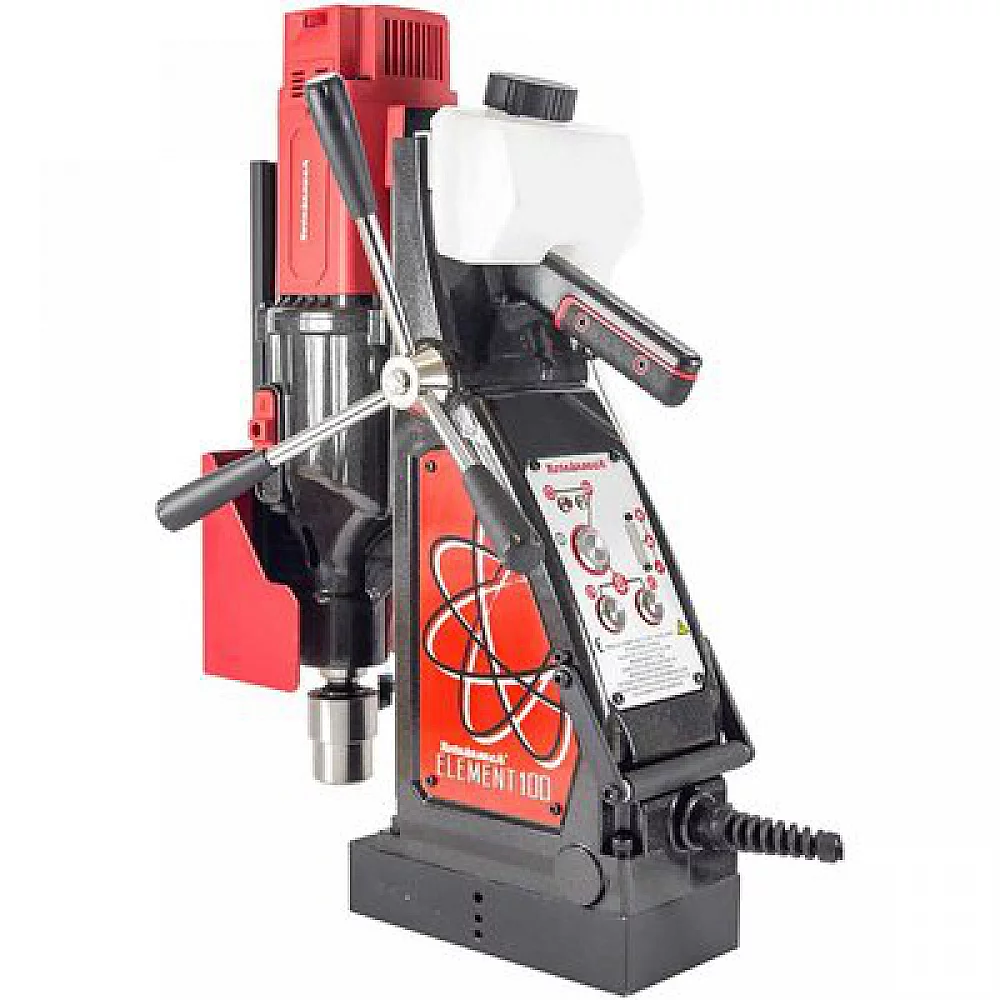

Rotabroach Element 100 Magnetic Drilling Machine

Rotabroachs largest machine with large drilling diameter and cutting depths, the Element 100 is suitable for drilling up to 100mm diameter by 100mm depth and offers forward & reverse functionality for tapping. A dual motor protection system helps to ensure a long operational lifetime and protects the machine from excessive wear. Features and Benefits • Rotabroachs largest machine • Suitable for drilling large diameter holes to deep depths • Forward & reverse functionality for drilling & tapping • Dual motor protection system for longer life • Four speed high performance gearbox • Powerful 2000W motor • Cutsmart primary motor protection • Variable speed secondary motor protection • Mounted coolant bottle • Internal motor cable • Ergonomic carry handle • Quick release capstan arm • 3 morse taper arbor • Intuitive control panel Specifications • Voltage 110v • Motor Specification 110v 2000w • No Load RPM Gear 1 45 129 RPM • No Load RPM Gear 2 70 208 RPM • No Load RPM Gear 3 150 434 RPM • No Load RPM Gear 4 240 700 RPM • Max Hole Cutting Capacity 100 x 100mm Deep 31.75 with MT Drill • Magnet Size 228mm x 114mm • Magnetic Adhesion 20,000N • Weight 25kg • Safety Features Cutsmart Technology Fixed Guard Magnetic Detection Contents • Rotabroach Element 100 Magnetic Drilling Machine • Internal Coolant System • 16mm Chuck • Arbor Assembly 6mm Hex Spanner Included • Safety Glasses • Arbor Shank • Drift • Safety Strap • 3mm Hex Spanner • Stationary Rings • Pilot Pin...Read More...»»
