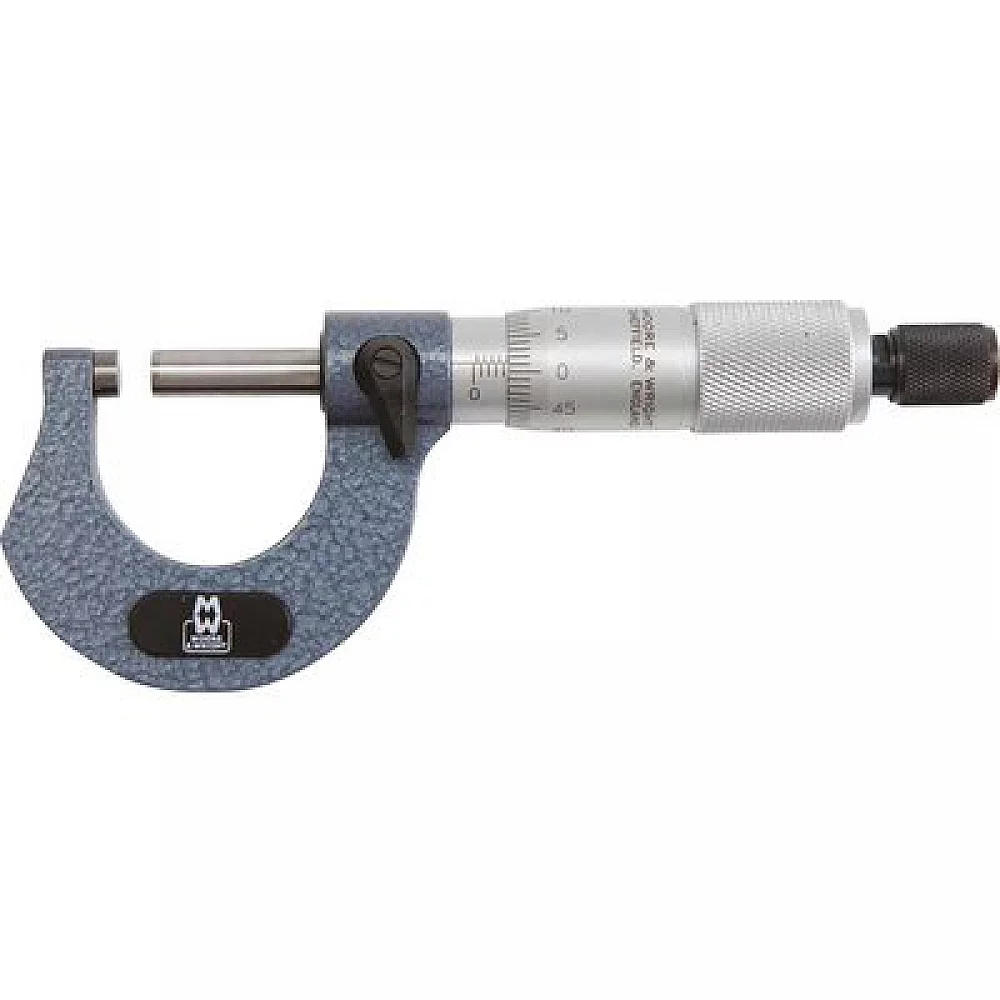

Moore and Wright 1965 External Micrometer

The Moore & Wright 1965 External Micrometer is a precision measuring instrument designed for accurate external dimension measurement in imperial units. Built to BS870, DIN 8631 and ISO 361 standards, this traditional micrometer delivers professional grade accuracy for engineers, machinists and quality control professionals requiring reliable imperial measurements. The micrometer features a distinctive blue textured frame finish with a tapered bow design that provides comfortable handling during extended use. Tungsten carbide measuring faces ensure exceptional wear resistance and long term dimensional stability, making this instrument ideal for high volume inspection work and precision engineering applications. The 6.5mm spindle diameter offers robust construction whilst maintaining the sensitivity required for accurate readings. Practical usability is enhanced through the speeder type ratchet mechanism, which enables rapid positioning before final measurement, whilst the integrated ratchet ensures consistent measuring pressure for repeatable results. The locking lever secures measurements for transfer or comparison, and the included adjusting key allows for calibration maintenance. With 0.001 inch resolution across a 0 1 inch range, this micrometer is well suited to precision machining, tool room work and component inspection where imperial measurements are specified. Each micrometer is supplied in a protective plastic pocket case for secure storage and transportation between workshop and site locations. Features and Benefits • Tungsten carbide measuring faces provide superior wear resistance and durability • Speeder ratchet mechanism enables rapid positioning and consistent measuring pressure • Locking lever secures measurements for accurate reading transfer • Manufactured to BS870, DIN 8631 and ISO 361 standards ensuring traceable accuracy • Supplied with adjusting key for calibration maintenance • Protective plastic pocket case included for safe storage Specifications Micrometer Type External MetricImperial Imperial Min. Measurement mm 0 Min Measurement in 0 Max. Measurement in 1 Graduation in 0.001 Micrometer Range 0 1in. Measuring Faces Flatness 0.00005in, Parallelism 0.0001in, Accuracy 0.0001in. Resolution 0.001in....Read More...»»
