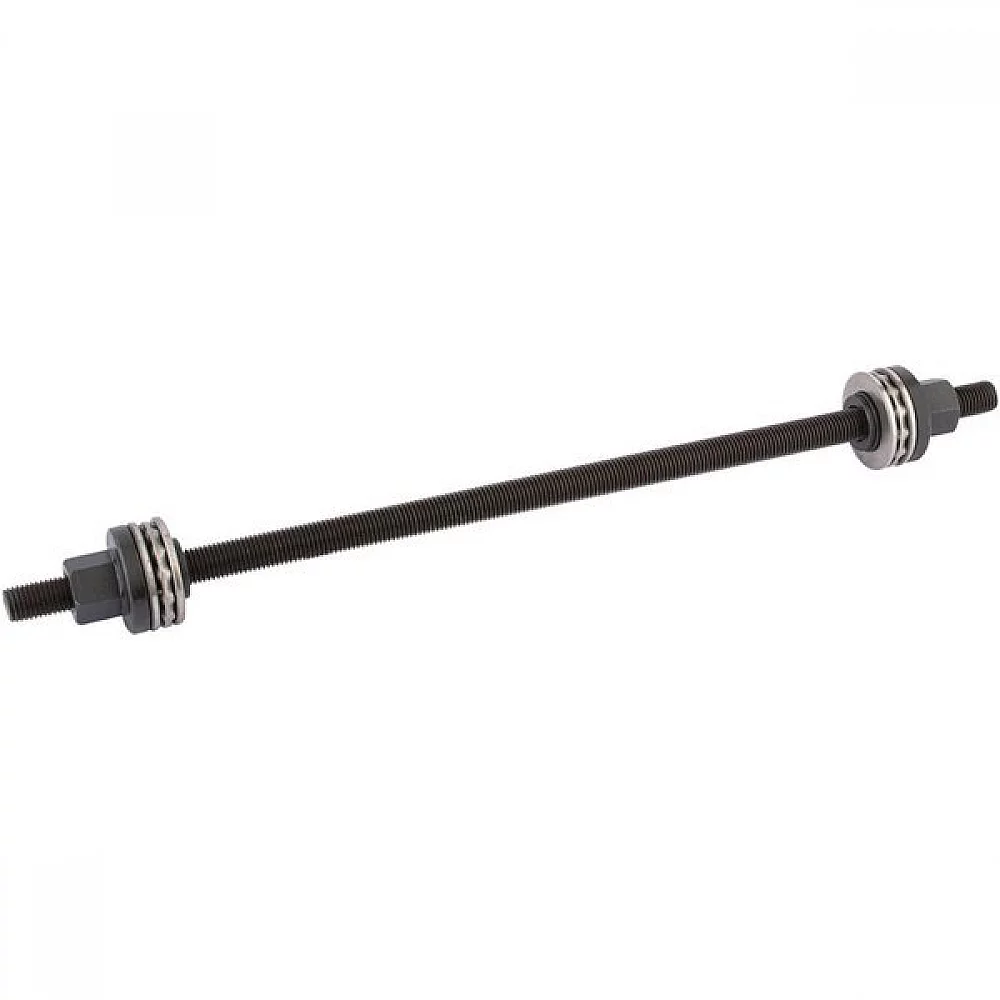

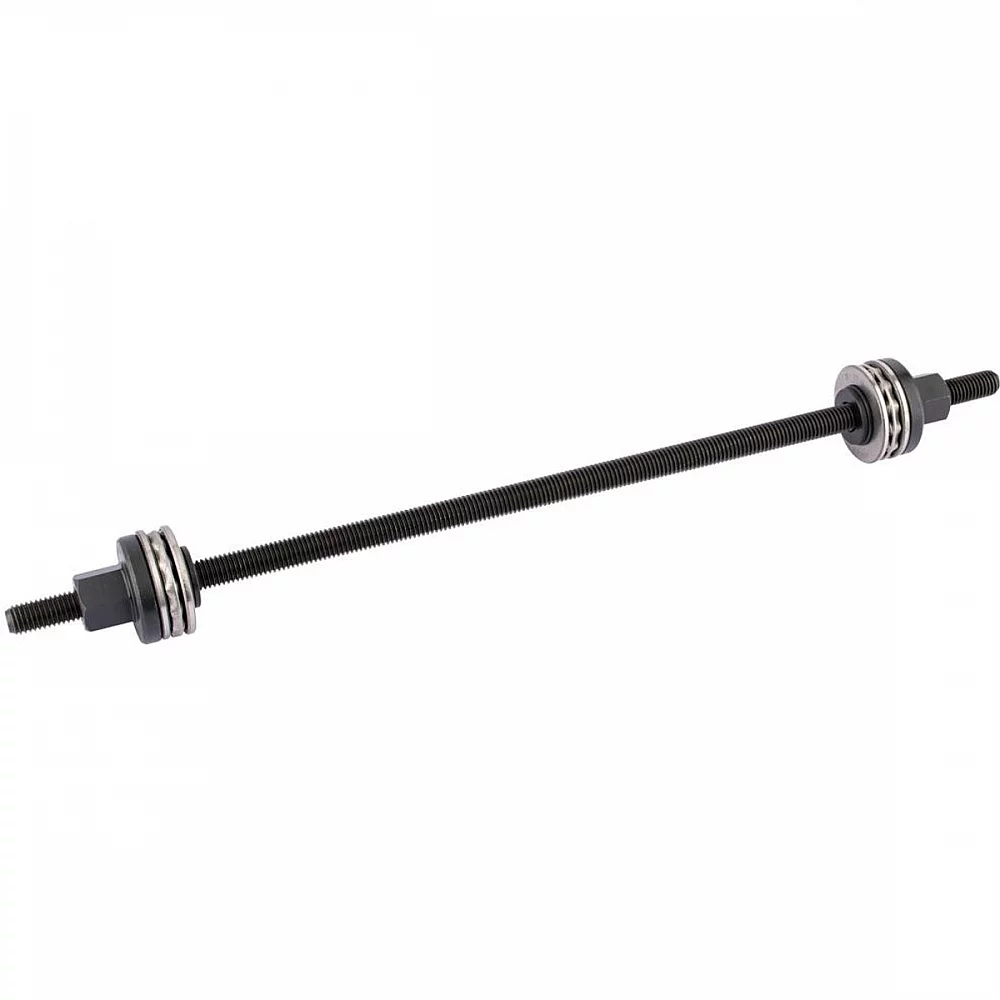

Draper YBPK27 Threaded Rod and Bearing

The Draper YBPK27 M10 Threaded Rod and Bearing Kit is specifically designed with an M10 primary thread configuration, making it ideal for smaller bearing assemblies and precision work on compact engine components. This variant provides exceptional control when working with delicate bearing installations where fine adjustment is paramount. This comprehensive kit enables accurate and controlled insertion and removal of normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes, and shaft seals. The M10 configuration is particularly well suited for applications requiring a finer thread pitch, delivering smooth, controlled operation on smaller shafts and housings. The complete set includes 22 precision engineered adaptor rings spanning from 34mm to 90mm diameters, plus five pulling spindles M10, M12, M14, M16, and M18 with thrust bearing hex nut ends. All components are supplied in a robust blow mould carrying case with display sleeve for convenient storage and transportation. Features and Benefits • M10 primary thread ideal for smaller bearing applications • 22 adaptor rings cover comprehensive bearing size range • Fine thread pulling spindles ensure controlled operation • Thrust bearing design reduces effort and increases precision • Professional blow mould case protects and organises tools Contents • 2 x Adaptor ring, 34mm x 44mm • 1 x Adaptor ring, 36mm x 46mm • 1 x Adaptor ring, 38mm x 48mm • 1 x Adaptor ring, 40mm x 50mm • 1 x Adaptor ring, 42mm x 52mm • 1 x Adaptor ring, 44mm x 54mm • 1 x Adaptor ring, 46mm x 56mm • 1 x Adaptor ring, 48mm x 58mm • 1 x Adaptor ring, 50mm x 60mm • 1 x Adaptor ring, 52mm x 62mm • 1 x Adaptor ring, 54mm x 64mm • 1 x Adaptor ring, 56mm x 66mm • 1 x Adaptor ring, 58mm x 68mm • 1 x Adaptor ring, 60mm x 70mm • 1 x Adaptor ring, 62mm x 72mm • 1 x Adaptor ring, 64mm x 74mm • 1 x Adaptor ring, 66mm x 76mm • 1 x Adaptor ring, 68mm x 78mm • 1 x Adaptor ring, 70mm x 80mm • 1 x Adaptor ring, 72mm x 82mm • 1 x Adaptor ring, 75mm x 85mm • 1 x Adaptor ring, 80mm x 90mm • 1 x M10 pulling spindle • 1 x M12 pulling spindle • 1 x M14 pulling spindle • 1 x M16 pulling spindle • 1 x M18 pulling spindle...Read More...»»
